High output LED modules that deliver over 1,000 lumens


  • Energy Star Certified and field-replaceable LED modules

  • 5 Year Warranty on complete fixture

  • ADA compliant and UL damp listed

  • 2700K, 3000K, 3500K, 4000K color temperatures available

  • Universal Input Voltage, 120 to 277v AC

  • TRIAC/ELV dimmable

Artboard 1@4x.png



Name: C10W

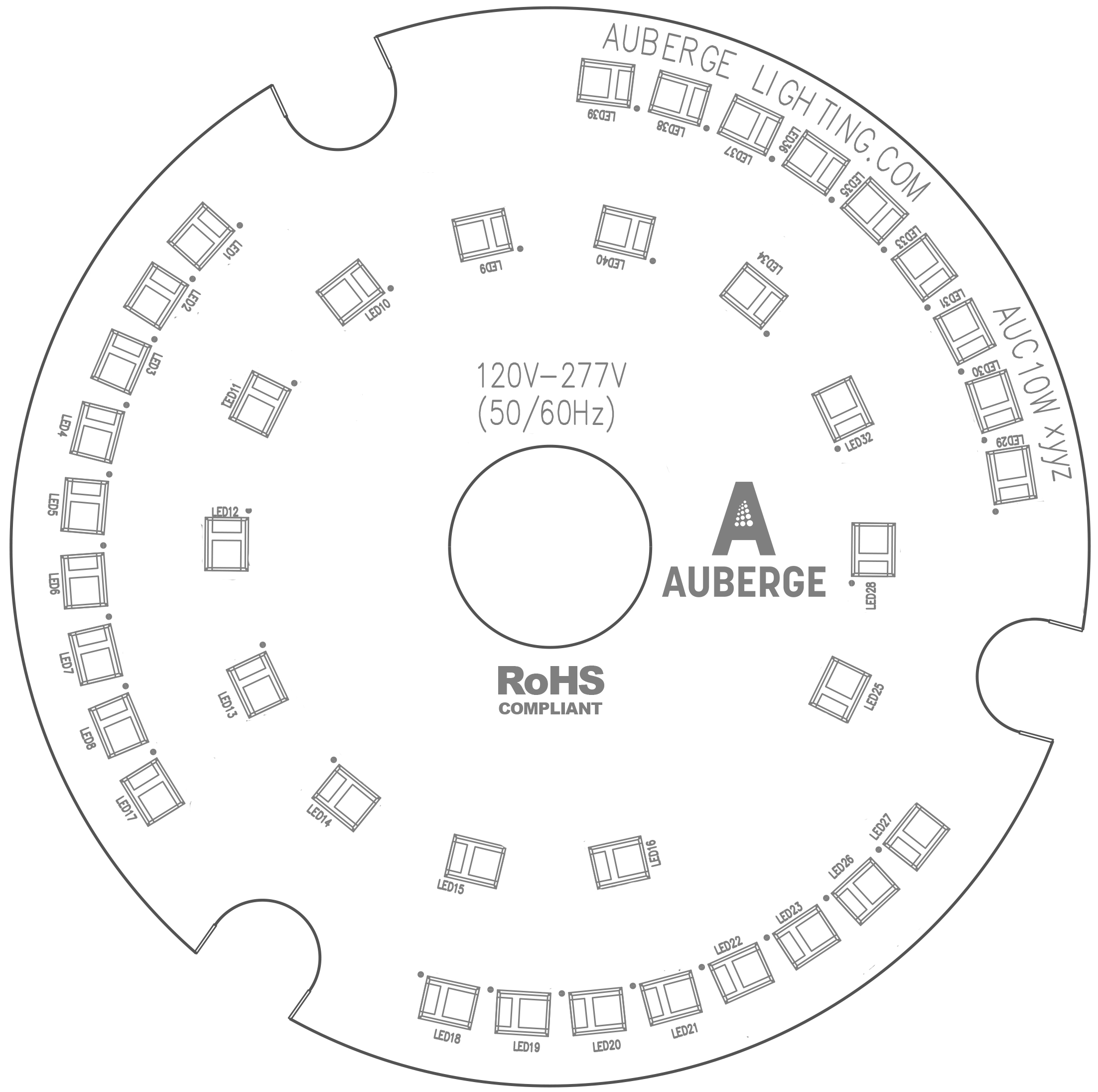

AU-C10W Module PCB AU.jpg
  • Input: 10W

  • Max Lumen Output: 1035 lumens @ 4000K/80 cri

  • 10 watt 1005 lumen round module powers 7x7, 9x9 and 7x9 shapes. 101 lumens per watt at 3000k

  • Module Efficacy: 103 LPW

  • Input Voltage: 120-277

  • Dimming Type/Range: Leading Edge (TRIAC) or Trailing Edge (ELV) / 100% to 10%

  • UL Damp Listed

  • CRI: 80 standard, 90 available

  • LED quantity: 24

  • Warranty: 5 Years



Name: R15W

AU-R15W PCB image AU.jpg
  • Input: 15W

  • Max Lumen Output: 1725 lumens @ 4000K/80 cri

  • 15 watt 1630 lumen rectangular module powers 9x12, 7x14 and 14x7 shapes. 109 lumens per watt at 3000k

  • Module Efficacy: 109 LPW

  • Input Voltage: 120-277

  • Dimming Type/Range: Leading Edge (TRIAC) or Trailing Edge (ELV) / 100% to 10%

  • UL Damp Listed

  • CRI: 80 standard, 90 available

  • LED quantity: 48

  • Warranty: 5 Years



Name: B-2-10

  • Input: 9.6W

  • Max Lumen Output: 1440 @ 4000K/80 cri

  • Module Efficacy: 145 LPW

  • Input Voltage: 120-277

  • Dimming Type/Range: Two dimming methods standard, LumenSelect 4 Light Level Dial (100%, 75%, 50%, 25%) and 0-10V dimming 100-10%

  • ETL Damp Listed

  • CRI: 80 standard, 90 available

  • LED quantity: 64

  • Warranty: 10 Years

  • Options: Fully Integrated within the module Emergency Battery Back-up



Name: SS-1-12

  • Input: 12W

  • Max Lumen Output: 1100 @ 4000K/90 cri

  • Module Efficacy: 105 LPW

  • Input Voltage: 120-277

  • Dimming Type/Range: Two dimming methods standard, LumenSelect 4 Light Level Dial (100%, 75%, 50%, 25%) and 0-10V dimming 100-10%

  • ETL Damp Listed

  • CRI: 90 standard

  • LED quantity: 108

  • Warranty: 10 Years
