LED MODULES

Advanced AC Direct LED Module

  • 10 watt 1005 lumen round module powers 7x7, 9x9 and 7x9 shapes. 101 lumens per watt at 3000k.
  • 15 watt 1630 lumen rectangular module powers 9x12, 7x14 and 14x7 shapes.  109 lumens per watt at 3000k
  • Both modules are Energy Star Certified with ALL resins.
  • Five year warranty on the module and resin shades.
  • 120v-277v universal Input with TRIAC and ELV dimming.

LED Module Specifications

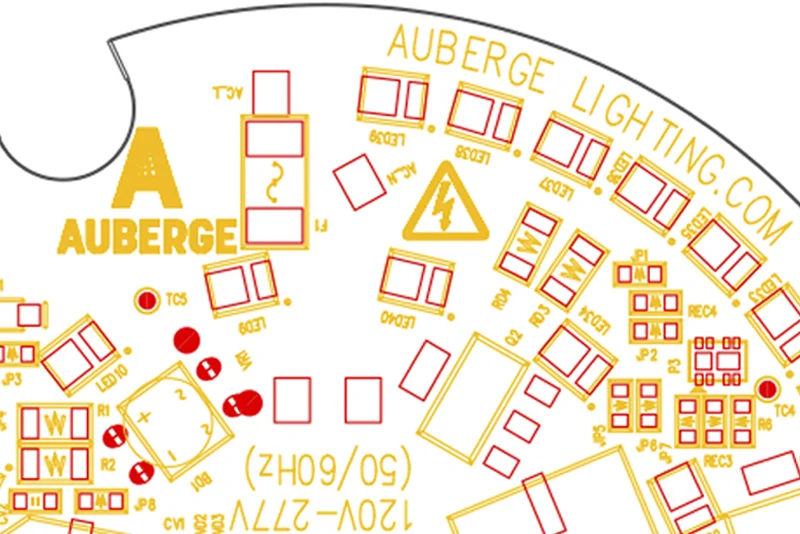

Name: C10W

  • Input:     10W
  • Max Lumen Output:  1035 lumens @ 4000K/80 cri
  • Module Efficacy:  103 LPW
  • Input Voltage:  120-277
  • Dimming Type/Range:  Leading Edge (TRIAC) or Trailing Edge (ELV) / 100% to 10%
  • UL Damp Listed
  • CRI:  80 standard, 90 available
  • LED quantity:  24
  • Warranty:   5 Years


Name: R15W

  • Input:     15W
  • Max Lumen Output:  1725 lumens @ 4000K/80 cri
  • Module Efficacy:  109 LPW
  • Input Voltage:  120-277
  • Dimming Type/Range:  Leading Edge (TRIAC) or Trailing Edge (ELV) / 100% to 10%
  • UL Damp Listed
  • CRI:  80 standard, 90 available
  • LED quantity:  48
  • Warranty:   5 Years


Name: B-2-10

  • Input: 9.6W
  • Max Lumen Output:  1440 @ 4000K/80 cri
  • Module Efficacy:  145 LPW
  • Input Voltage:  120-277
  • Dimming Type/Range:  Two dimming methods standard, LumenSelect 4 Light Level Dial (100%, 75%, 50%, 25%) and 0-10V dimming  100-10%
  • ETL Damp Listed
  • CRI:  80 standard, 90 available
  • LED quantity:  64
  • Warranty:   10 Years
  • Options:  Fully Integrated within the module Emergency Battery Back-up

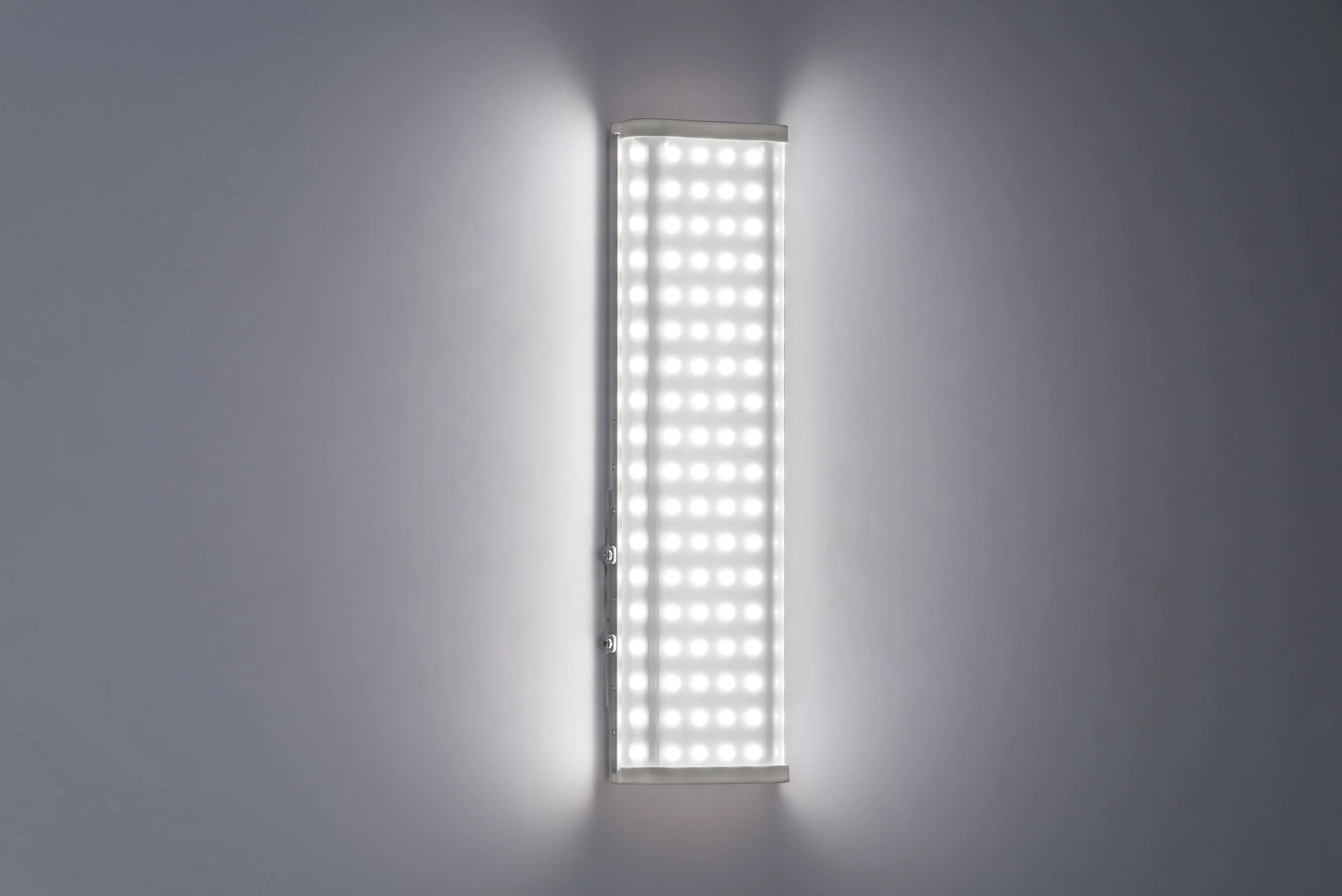

Name: SS-1-12

  • Input:  12W
  • Max Lumen Output:  1100 @ 4000K/90 cri
  • Module Efficacy: 105 LPW
  • Input Voltage:  120-277
  • Dimming Type/Range:  Two dimming methods standard, LumenSelect 4 Light Level Dial (100%, 75%, 50%, 25%) and 0-10V dimming  100-10%
  • ETL Damp Listed
  • CRI:  90 standard
  • LED quantity:  108
  • Warranty:   10 Years
